Technical Specifications

User Capacity: 2000
Fingerprints Capacity: 2000
Card Capacity: 2000
Transaction Storage: 100000
Push Data: Yes
Card Reader: Yes
Fingerprint sensor: 500 DPI Optical Sensor
FAR : <=0.0001% / FRR : <=1%
Identication Speed: <= 1sec
Algorithm Ver: 10
Display: 2.8” TFT Sceen
Keypad: 4 x 4 Keypad
LED Indicator: Green/Red
Schedule Bell/Speaker: Mini Speaker
Communication: TCP/IP, USB-host
Standard Features: Inbuilt Battery Backup,
Self Service Query
Status Switch, DST, T9 Input

Power Supply

Power Supply: 12V DC, 1.5 Amps
Operating Temprature: 0°C to 45°C
Operating Humidity: 20% - 80%
Dimension (in mm): 185 x 140 x 30
Access Control: Yes
Relay: 12V
Exit Readers: NO
Exit: NO TOUCH and PUSH BUTTON
Inbuilt Battery: yes

Compatible Software & SDK

eTimeTracklite desktop & web

Major Applications

Time & Attendance , Canteen management, School attendance, Production Management, Gym & clubs

PDF Catalogue

Storage Capacity

Fingerprint Capacity : 10000
Card Capacity : 10000
Transaction Capacity : 100000
Card Reader : Inbuilt proximity card reader (Optional Mifare, HID prox)
CPU : 32bit microprocessor
SDRAM : 128 MB Nand Flash
Flash : 256 MB Nand Flash
Kernel : 2.6

Biometric

Fingerprint sensor : 500 DPI Optical sensor
FAR : <=0.0001%< /li>
FRR : <=1%< /li>
Identification speed : <0.5 sec
Algorithm Ver : 10

Audio/Visual

Display : 3" Color TFT
Keypad : Yes
LED Indicator : Green/Red
Schedule Bell/Speaker : Mini Speaker

Communication

TCP/IP, USB, (Optional : WiFi, GPRS)
Push data : Yes (support both static IP and domain server) Standard Features : work code,SMS,DLST, Self service query, Status Switch

Power & Environment

Power Supply : DC 12V --- 1.5Amp
Operating Temperature : 0oC - 45oC
Operating Humidity : 20% - 80%
Dimension(in mm) : (L)210 x (W)157 x (H)40

Access Control

Wiegand : In & Out both 26 or 34 bit (With or without site code)
Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock
Support Fire Alarm : Yes
Door Sensor : Yes
Anti Passback : Yes
Door Bell : Yes

Exit Readers

Support exit readers : 101 HE , FR 1200, Push Button, KR500, Notouch, KR503

Optional

Battery : Yes
Card readers : Mifare/HID Prox
Communication : WiFi/GPRS
Sensor : Mifare/HID Prox

Compatibility

Compatible with Multi Door controllers via weigand
External Speaker output available (Optional)
External Bulb output available (Optional)
Support External Printer

Compatible Software and SDK

eTimeTrackLite desktop & web
SDK for desktop applications
Web based Device Management application using Push data. Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications

Major Applications

Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs

PDF Catalogue

Storage Capacity

Fingerprint Capacity : 3000
Card Capacity : 5000
Finger Algorithm : Finger VX10.0
Record Capacity : 30000
CPU : 32 bit Microprocessor
Coreboard : ZLM60

Biometric

Fingerprint sensor : 500 DPI SilkID sensor
FAR : <=0.0001%< /li>
FRR : <=1%< /li>
Identification speed : <0.5 sec
Algorithm Ver : 10

Communication

Communication : RS232/485, TCP/IP, USB-host, Built in Wi-Fi
Wiegand : In & Out
Push Data : Yes(support both static IP and domain server)
Standard Features : work code,SMS,DLST, Self service query, Status Switch

Visual

Display : 2.8-inch TFT Screen
Keypad : Yes
LED Indicator : Green/Red

Standard Functions

DST, Automatic Status Switch,Record query, T9 input, 14 digit user ID, Anti-passback Mifare (Optional)

Power & Environment

Power Supply : DC 12V --- 1.5Amp
Operating Temperature : 0°C - 45°C
Operating Humidity : 20% - 80%
Dimension (in mm) : (L)158.5 x (W)78.0 x (H)19.4mm

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Exit Readers

Support exit readers : FR 1200, Push Button, KR500, Notouch, KR503

Features

- 2.4inch TFT color screen and Touch keys
- Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
- Standard Wi-Fi
- Network interface by TCP/IP or RS485
- Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
- Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Compatible Software & SDK

eTimetracklite Desktop & Web
SDK for desktop applications
Web based Device Manager - Bio Server Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications

Product - Finger Print Biometric

Product Highlights

FINGER PRINT - K30 PRO

Features

PRODUCT HIGHLIGHTS

FINGER PRINT - X990

Features

Product Highlights

FINGERPRINT - F22

Features

PRODUCT HIGHLIGHTS

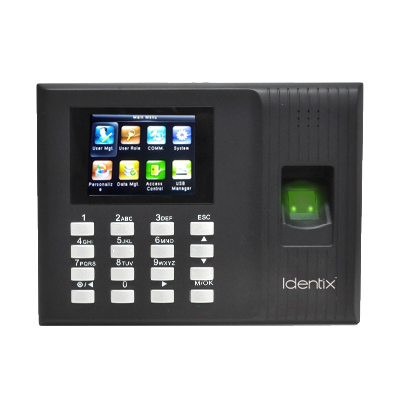

FINGER PRINT - K90 Pro

Features

Product Highlights

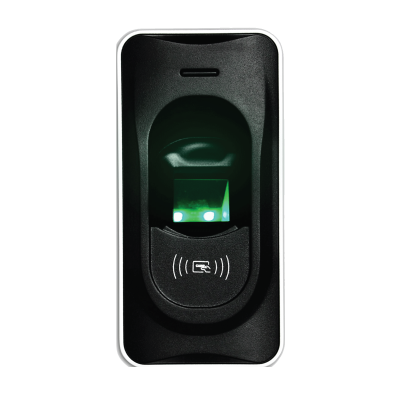

FINGERPRINT - FR1200

Features
